This article has been translated to Japanese by Kana Takahashi on POSTD.
The display property is one of the most important CSS properties we use for layout. Most of us would have used block, inline and none. table and inline-block are also quite common. The new darling is definitely flex, because it’s a display property that was created specifically for layout. The upcoming grid (currently still being actively worked on) is another layout-specific property that we’ll soon have in our arsenal as well.
This post grew much longer than I initially expected so feel free to skip to a subsection if you wish. Though I would really appreciate it if you took the time to read the whole post 😁.
Table of contents
- Those we know quite well already
- Remember them table-based layouts?
- New kids on the block
- The relatively obscure and experimental
- Further reading
Through my experience of building various responsive designs, I learnt a lot about the display and position properties, how they work and how they can be combined with media queries to achieve the desired layouts. I’ll briefly cover each value, and also reminisce about a few responsive components I built previously that utilised display quite heavily.
We can’t talk about display without mentioning something called a box tree. Basically the browser parses CSS and renders it by generating a box tree, which represents the formatting structure of the rendered document. The display property defines the box’s display type.
The topic of how browsers render stuff on the screen is a really fascinating one and I highly suggest reading How Browsers Work: Behind the scenes of modern web browsers by Talia Garsiel. Another must-read is Evolution of CSS Layout: 1990s to the Future by Fantasai, who works on CSS specifications at W3C. It’s actually a talk she gave at the Emerging Technologies for the Enterprise conference, but there’s a full transcript if video is not your thing.
Those we know quite well already
Fun fact: the display values we use all the time are actually short-hand. For example, block is actually short-hand for block flow. Refer to the specification for full list.
All elements have a default display value, but they can be overridden by explicitly setting the display value to something else.
display: none
Removes the element and its children from the normal document flow. The document is rendered as if the element was never there to begin with, which means the space it occupied is collapsed. The content of the element is also ignored by screen readers.
display: inline
The element generates one or more inline boxes. Inline-level elements take up, as the name suggests, as much space on the line as its tags define. Can be considered the complement to block-level elements.

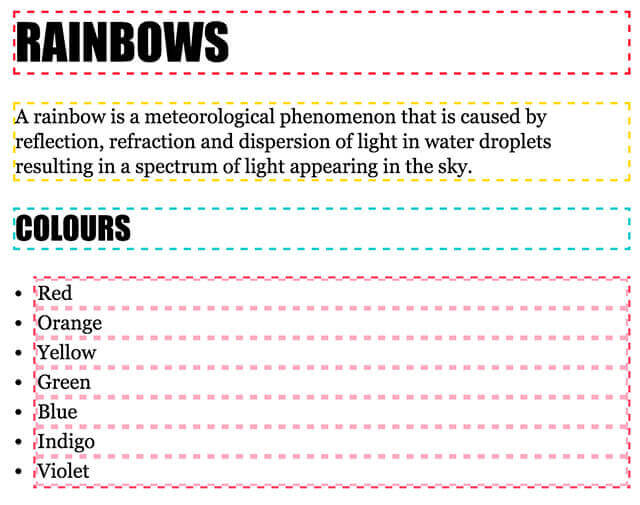

display: block
The element generates a block level box. All block-level elements start on a new line and, unless otherwise specified, stretches to width of its container.
display: list-item
An element rendered as a list-item behaves exactly like that of a block-level element, but it also generates a marker box, which can be styled by the list-style property. Only <li> elements have the default value of list-item. Usually used to reset <li> elements back to their default behaviour.
display: inline-block
See the Pen CSS Display property by Chen Hui Jing (@huijing) on CodePen.
The element generates a block level box, but the entire box behaves like an inline element. Try it opening the above example on CodePen and adjusting your window width, it’ll make more sense that way.
A responsive numeric stepper
One of the components I had to build was a numeric stepper for selecting different types of passengers. I got a static photoshop file with 1 mobile layout and 1 desktop layout. But there were all the in-between widths that weren’t accounted for which “broke” the layout.
It was mainly due to the text in parenthesis that didn’t collapse nicely. So I had to toss in a bunch of media queries to adjust the width and display of the relevant elements at different widths. Check out full-sized Codepen to see how the component responds at different window widths.
See the Pen CSS Display example by Chen Hui Jing (@huijing) on CodePen.
Remember them table-based layouts?
There are a set of display values that allow your elements to behave just like HTML tables. My fellow Singapore-based developer Colin Toh wrote a great post on the display: table property, which you should really check out.
Although most of us no longer use table-based layouts, display: table is still pretty useful in certain cases. For example, if you wanted to have tables only on wider layouts, but retain a typical block layout on smaller widths. This can be achieved with a combination of media queries and display (with some pseudo-elements thrown in for good measure), just resize this window to see how it works.
<table> HTML element. It defines a block-level box.<thead> HTML element.<tr> HTML element.<td> HTML element.<tbody> HTML element.<tfoot> HTML element.<colgroup> HTML element.<col> HTML element.<caption> HTML element.@media screen and (min-width: 720px) {
.table {
display: table;
width: 100%;
border-collapse: collapse;
}
}
.tr {
margin-bottom: 1.6rem;
}
@media screen and (min-width: 720px) {
.tr {
display: table-row;
}
}
@media screen and (min-width: 720px) {
.td {
display: table-cell;
border: #f0f0f0 1px solid;
padding: 0.4rem;
}
.td:first-child {
width: 11em;
}
}
.th {
font-size: 1rem;
line-height: 1.6rem;
font-family: "Palo Alto";
}
@media screen and (min-width: 720px) {
.th {
font-size: 1.294rem;
line-height: 1.6rem;
}
}
@media screen and (min-width: 720px) {
.th {
font-size: 0.8rem;
line-height: 1.6rem;
font-family: "Roboto Slab", Rockwell, serif;
font-weight: 700;
}
}
@media screen and (min-width: 720px) and (min-width: 720px) {
.th {
font-size: 1rem;
line-height: 1.6rem;
}
}
.th::before {
content: 'display: ';
}
@media screen and (min-width: 720px) {
.th::before {
content: '';
}
}
.th::after {
content: ';';
}
@media screen and (min-width: 720px) {
.th::after {
content: '';
}
}New kids on the block
Tab Atkins Jr., the primary author of the Flexbox and Grid specifications, made a salient point about these new layout-specific display modes.
Flexbox is for one-dimensional layouts - anything that needs to be laid out in a straight line (or in a broken line, which would be a single straight line if they were joined back together).
Grid is for two-dimensional layouts. It can be used as a low-powered flexbox substitute (we’re trying to make sure that a single-column/row grid acts very similar to a flexbox), but that’s not using its full power.
- Tab Atkins Jr. to www-style
Something to keep in mind as you adopt these new CSS layouts in your work, and are confused about when to use which.
display: flex
The introduction of the flexbox layout mode, or CSS Flexible Box, marks the first time we have a specification that is really meant for laying out content in the browser. Laying out content on the web has evolved quite a bit since HTML was first introduced. When designers wanted to have some creative layout, the first technique used was nesting HTML tables, or what we refer to as table-based layouts.
And when CSS started to pick up, we moved over to float-based layouts, by nesting our content in different divs to float them around to get the desired effect. Float-based layouts are still very common but with flexbox being fully supported by all current browsers as of time of writing, I think it won’t be too long before flexbox and grid, which will be covered later, become the prevailing method for layout.
I’m going to reference Scott Vandehey’s article What IS Flexbox?, where he asks Tab Atkins Jr. about the history of Flexbox. The earliest draft for the specification is dated July 23, 2009 but discussions started a few years before that.
However, nothing was formally structured and the various browser vendors sort of implemented flexbox but didn’t really follow the specification. Which is why the flexbox syntax became pretty messy (and still is when it comes to backward compatibility on older browsers).
The flexbox model is very powerful, and because it can do a lot, some effort is required to fully understand how it works and how to use it. Both flexbox and grid require full-length articles to cover in depth, so I’ll list my go-to resources for flexbox here:
- A Complete Guide to Flexbox by Chris Coyier
- Solved by Flexbox by Philip Walton
- Flexbox Froggy by Thomas Spark
- Using CSS flexible boxes by Mozilla Developer Network
- CSS Flexbox Specification (Editor’s Draft)
By declaring display: flex on an element, it becomes a flex container, and its child elements become flex items. This does not cascade further, meaning the flex properties do not extend to the element’s grandchildren. Both the flex container and flex items have their own respective flex properties.
Properties for flex container
Properties for flex items
Again, I highly recommend you check out the list of flexbox resources above, which are chock full of examples that help with the understanding of to use flexbox in your code.
display: grid
For anything related to the Grid layout, I always refer to Rachel Andrew, whom I regard as the guru of CSS grids. She has been spearheading the effort to increase awareness about this new display property through her talks, articles and tutorials.
CSS grid gives us a way to create grid systems and control the positioning of grid items purely through CSS, a clear separation of concerns from HTML. When used together with media queries, CSS grid becomes a powerful addition to your tool-belt when it comes to designing and building flexible layouts.
The current CSS Grid Layout Module Level 1 we have now started off as a working draft in 2011. Like flexbox, this specification came about from the growing need to have a proper method for laying out content on the web without compromising the semantics of HTML.
Note that CSS grid is not officially implemented in any browser, although Microsoft Edge and Internet Explorer support an older version of the specification behind the -ms- prefix. This is not surprising because a majority of the editors for the original grid specification were from Microsoft.
After the messy implementation of the flexbox specification, the development of CSS grids is taking a different approach. Browser vendors make use of vendor prefixes to add experimental features to browsers for developers to test out. This helps with the process of refining the specification and work out any kinks before they become official.
Instead of doing that, CSS grid has developed behind a flag. It has to be manually enabled by developers. In Chrome and Opera, navigate to chrome://flags and opera://flags respectively, and enable “experimental web platform features.” For Firefox, navigate to about:config and set layout.css.grid.enabled and layout.css.grid-template-subgrid-value.enabled to true.
Key CSS grid terminology
To try to cover grid in this short subsection is really doing the specification a disservice because the totality of what it can do is huge. Please do read through the following resources and experiment around with CSS grids. In fact, you can go to Grid by Example right now and access links to various CodePens that demonstrate how to use CSS grids for all kinds of use-cases.
- Deep Dive into Grid Layout Placement by Manuel Rego Casasnovas
- A Complete Guide to Grid by Chris House
- Grid by Example by Rachel Andrew
The relatively obscure and experimental
display: run-in
Now this is a fun one I hadn’t heard of until I started reading the CSS Display specification. And I also uncovered the 2010 article, CSS Run-in Display Value by Chris Coyier. Unfortunately, it seems that browser vendors are not fond of this specification at all and it has since been removed from all browsers, so you can think of this as an alternate reality specification. ¯\_(ツ)_/¯
Theoretically, if you set an element’s display property to run-in, it renders as a run-in box. The use-case is to have a native method to create run-in headings, which in graphic design parlance is a heading positioned on the same line as the next line of body copy.
You could use floats to achieve a similar effect, but it is sort of a hack-ish method. Lining up the baseline of the header with the body copy is quite challenging, as you have to tweak the font-size of the header and the line-height of the body copy until they match up. And there may be situations where the header just ‘catches’ more than a single line.
If you want to use display: inline on the header instead, it won’t work unless you nest the header element in the paragraph element of body copy (because p is a block element), and that is semantically incorrect. So I personally would have liked to see this implemented, but I suppose the browser vendors have more high priority specifications to worry about at the moment.
display: ruby
This particular property needs an introduction to the <ruby> element for it to make sense to you. In a nutshell, there is an element for displaying annotations alongside a base line of text, usually to help with pronunciation. They’re a pretty common sight for East Asian languages, like Chinese or Japanese. Most of the articles I came across during my research were dated around 2010, so I wrote about the 2016 state of HTML <ruby>.
There are some parallels between display: ruby; and display: table;, but the specification strongly discourages applying ruby display values to non-ruby elements like span to display ruby text. Rather, we should markup our content using the HTML ruby elements so screen readers and non-CS renderers can interpret the ruby structures.
<ruby> HTML element. It generates a ruby container box, which establishes a ruby formatting context for child elements marked as internal ruby boxes.<rb> HTML element. An internal ruby box in the ruby formatting context.<rt> HTML element. An internal ruby box in the ruby formatting context.<rbc> HTML element. An internal ruby box in the ruby formatting context.<rtc> HTML element. An internal ruby box in the ruby formatting context.display: contents
The element itself does not generate any boxes, but its children and pseudo-elements still generate boxes as normal. For the purposes of box generation and layout, the element must be treated as if it had been replaced with its children and pseudo-elements in the document tree.
—CSS Display Module Level 3
What the specification is trying to say is that, when you set display: contents on an element, it will disappear from the DOM but all its children remain and take up the space it occupied. Unfortunately, this specification is only supported by Firefox for now. Resize the full size CodePen in Firefox to get a feel of how it works.
See the Pen CSS display: contents by Chen Hui Jing (@huijing) on CodePen.
I’ve managed to uncover 2 articles that talk about this display property thus far, Firefox is releasing support for CSS display: contents by Sam Rueby and Vanishing boxes with display contents by Rachel Andrew. Rachel Andrew also presents a fantastic use-case for this property with flex-items. Do check out both articles.
Wrapping up
Whew, that ended up being way longer than I initially expected. So a big thank you if you actually read the whole thing. I’m really excited about the new options we’ll have very soon to create unique layouts without having to resort to hacks, and I hope this post will encourage you to learn more about CSS layouts as well.
